Load image into Gallery viewer, Aeria Riser Kit

Aeria Riser Kit

Name: Aeria Riser Kit
Brand: profile design cycling
SKU: ACARA40RISKT
Availability: InStock

$72.00

Size

Quantity

Overview

The Aeria Riser Kits were created to allow the rider to choose an appropriate stack range for their needs. By splitting the riser kit into three stack ranges the rider has scope to adjust their position without needing to purchase the full kit of risers.

Tech Specs

Compatibility: Aeria AL, Aeria Evo, Aeria AL Evo, Aeria Carbon, Parlee TTiR Disc and BMC TM01 Flate Cockpit
Includes: Risers and Bolts specific to the kit size
Maximum Height: Kits available in 5-40mm, 45-60mm or 65-80mm

Tech Guide

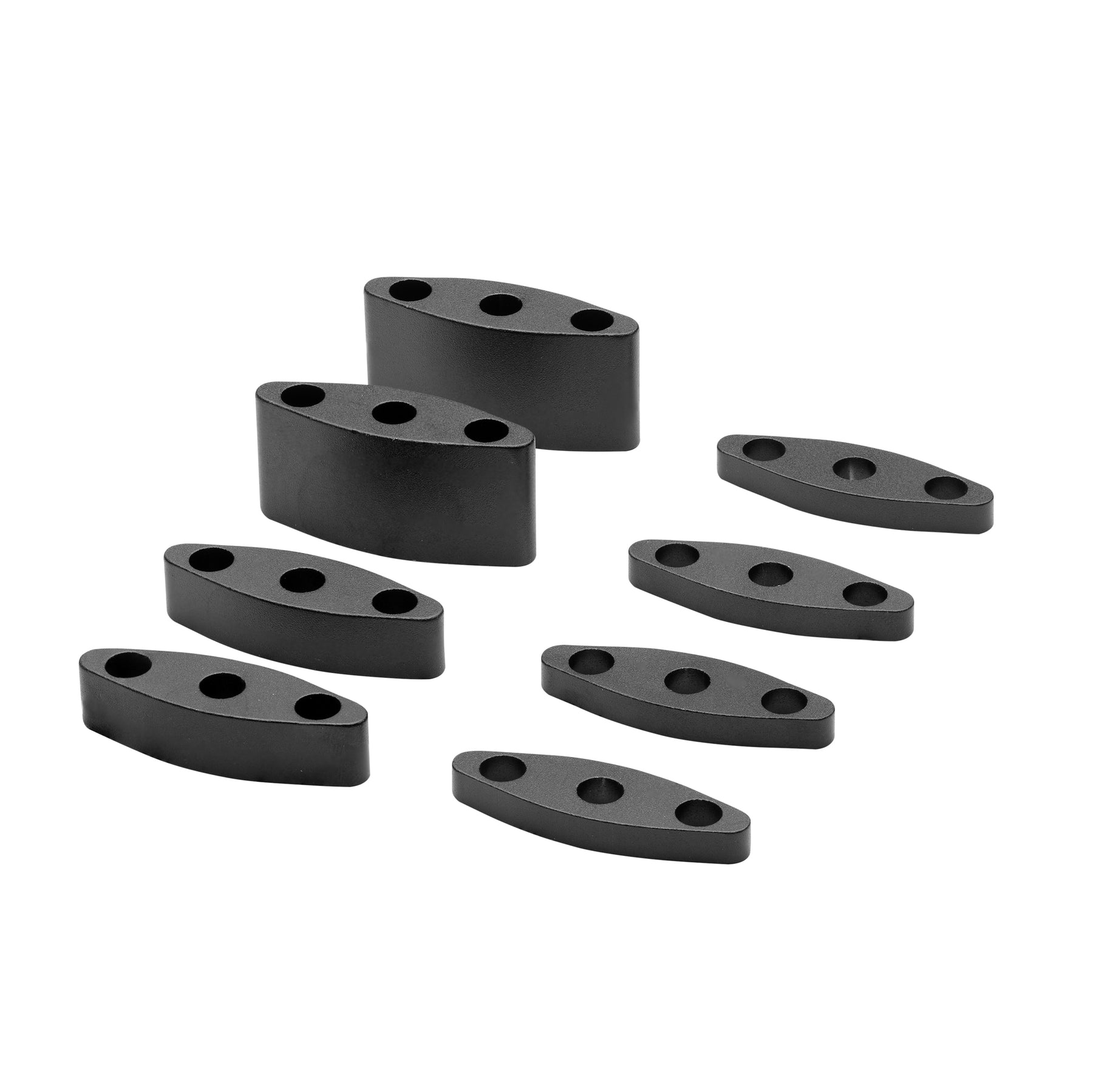

5-40mm Riser Kit Includes:

Risers:
5mm: 4 Risers
10mm: 2 Risers
20mm: 2 Risers

Bolts:
20mm: 4 Bolts
25mm: 4 Bolts
30mm: 4 Bolts

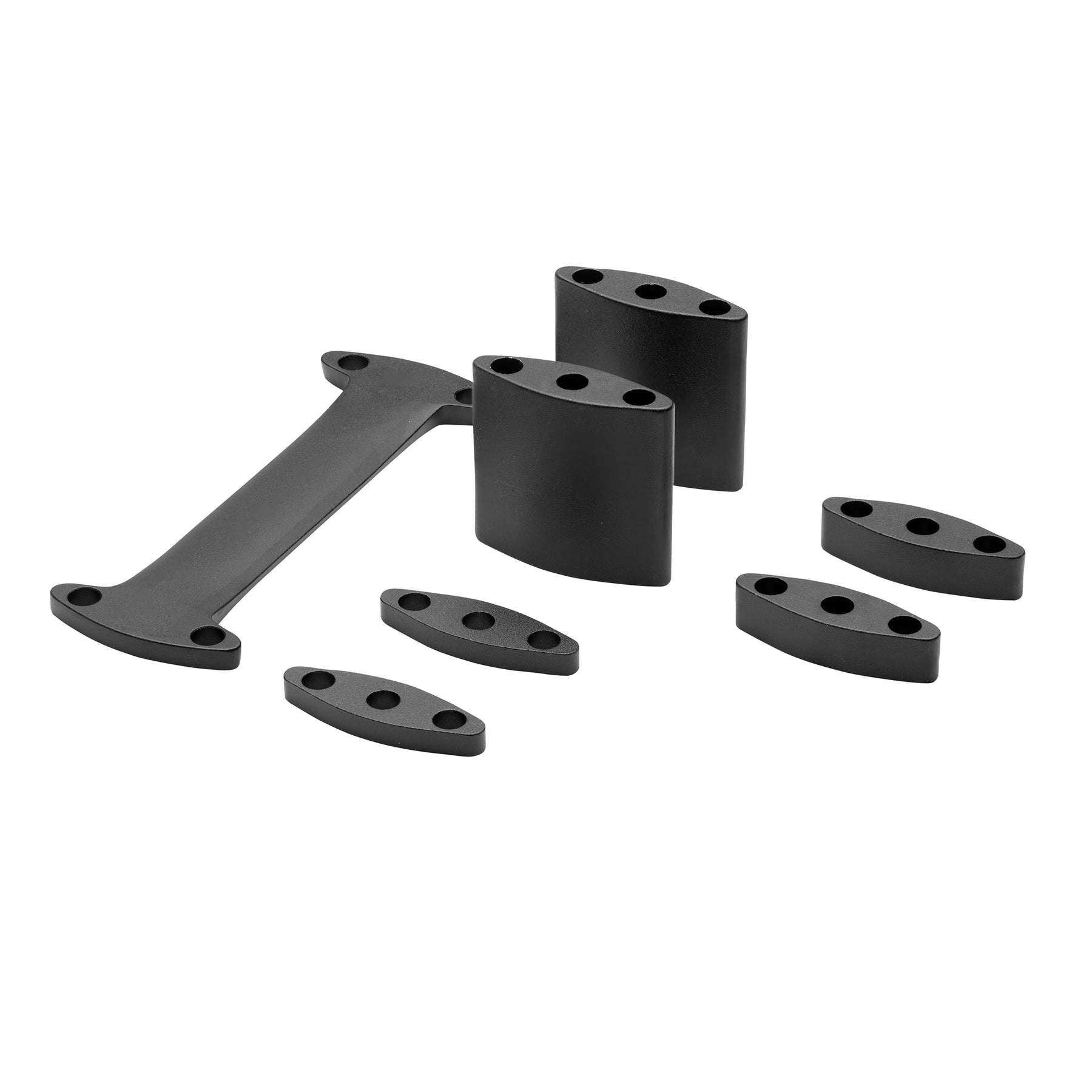

45-60mm Riser Kit Includes:

Risers:
5mm Bridge: 1 Bridge
5mm: 2 Risers
10mm: 2 Risers
40mm: 2 Risers

Bolts:
60mm: 4 Bolts
65mm: 4 Bolts
70mm: 4 Bolts
75mm: 4 Bolts

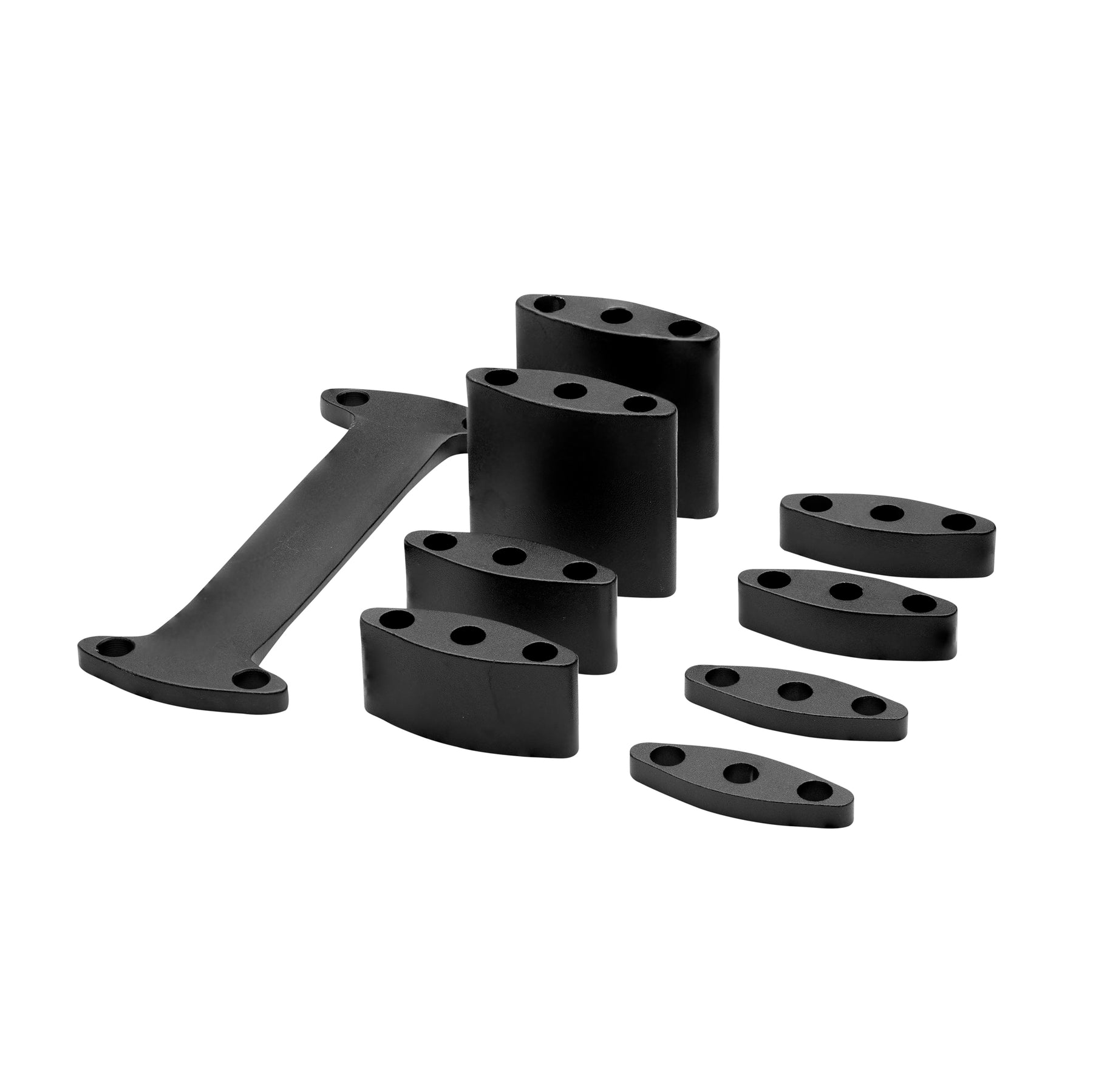

65-80mm Riser Kit Includes:

Risers:
5mm Bridge: 1 Bridge
5mm: 2 Risers
10mm: 2 Risers
20mm: 2 Risers
40mm: 2 Risers

Bolts:
80mm: 4 Bolts
85mm: 4 Bolts
90mm: 4 Bolts
95mm: 4 Bolts

Manual

Aeria Installation Instructions

Aeria Evo Installation Instructions
